I remember when... Building a memory. The Sd.Kfz.7/1 Flakvierling 38. Making the plastic into a model.

 The Sd.Kfz.7/1 Flakvierling 38.

The Sd.Kfz.7/1, was born shortly after the 2cm Flakvierling 38 was presented to Adolf Hitler in October 1939. The Luftwaffe ordered 100 such weapons systems to be mounted on the Sd.Kfz.7 chassis. Production started in February 1940 and continued until December 1944, by which time between 750 and 800 were manufactured.

Let's put some  plastic together. But first, a basecoat of grey.

Putting the guns together.

Even as the Flak 30 was entering service, the Luftwaffe and army branches of the Wehrmacht had doubts about its effectiveness, given the ever-increasing speeds of low-altitude fighter-bombers and attack aircraft. The Army in particular felt the proper solution was the introduction of the 37 mm calibre weapons they had been developing since the 1920s, which had a rate of fire about the same as the Flak 38 but fired a round with almost eight times the weight. This not only made the rounds deadlier on impact, but their higher energy and ballistic coefficient allowed them to travel much longer distances, allowing the gun to engage targets at longer ranges. This meant it could keep enemy aircraft under fire over longer time spans.

The 20 mm weapons had always had weak development perspectives, often being reconfigured or redesigned just enough to allow the weapons to find a use. it was no surprise when Rheinmetall introduced the 2 cm Flakvierling 38, which improved the weapon just enough to make it competitive again. The term Vierling literally translates to "quadruplet" and refers to the four 20 mm autocannon constituting the design.

It looks a good'un.

The Flakvierling weapon consisted of quad-mounted 2 cm Flak 38 AA guns with collapsing seats, folding handles, and ammunition racks.

Each of the four guns had a separate magazine that held only 20 rounds. This meant that a maximum combined rate of fire of 1,400 rounds per minute was reduced practically to 800 rounds per minute for combat use – which would still require that an emptied magazine be replaced every six seconds, on each of the four guns.

However, automatic weapons are typically limited to roughly 100 rounds per minute per barrel to give time for the heat to dissipate, although this can be exceeded for short periods if the firing window is brief.

The gun was fired by two pedals — each of which fired two diametrically opposite barrels — in either semi-automatic or automatic mode. The effective vertical range was 2,200 metres. It was also used just as effectively against ground targets as it was against low-flying aircraft.

We'll come back to the gun later. It's time to begin the thing it sits on.

A base of  German grey and then  I'll pick out the tyres in a very dark grey.

The usual process. Remove the parts trim and sand.

This is a wheel.                                                                These are wheels too.

And slowly we build up the substructure including the winch and suspension..

Steering was achieved using the front two wheels. These were air-filled rubber wheels that were steered using the steering wheel in the driver’s cabin. The tracks could also be powered separately in order to help turning, but this was used only if the steering wheels were insufficient. The front wheels had a leaf-spring suspension.

Add a little bit of early weathering.

The metal screw will be used to tension the tracks.

The rubber tires will need cleaning up with a bit of emery. I'll leave it a bit rough too.

More wheels... They keep on coming...

Simply follow the instructions and hey presto!

I'll touch up when we are complete.

Time for the body.

The engine  compartment went together well enough though I did need a little filler here and there.

I painted the drivers  area now while the access was good.

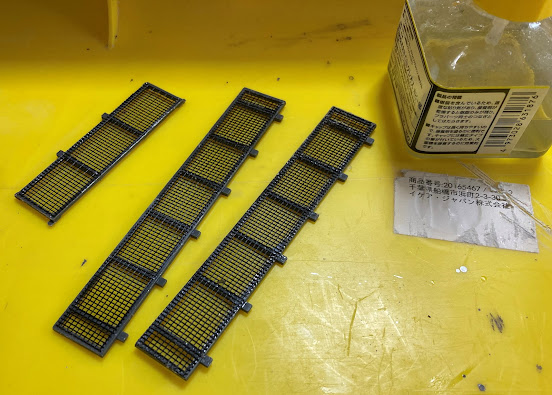

Netting around the gun...

Fairly straight forward. I secured mine with PVA white glue.

Looking good...

 The tractor could tow loads up to 8,000 kg (17,600 lb) in weight. Most were fitted with a winch that could pull up to 3450 kg. It had a payload of 1800 kg. The windscreen was able to fold down and a canvas roof could be erected.

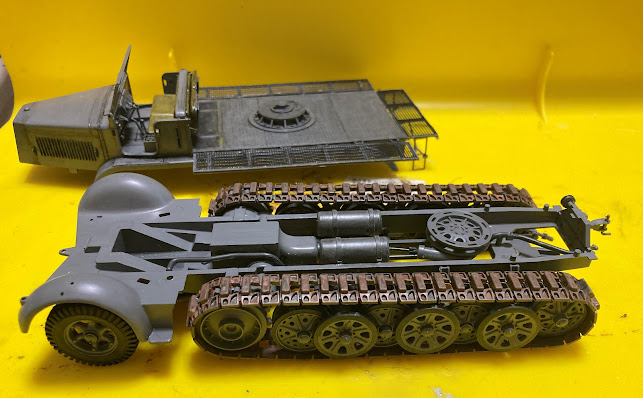

And now for the tracks.

And this is what it looks like with a touch of weathering.

Put it together and do you have?

The Maybach HL62 TUK, six-cylinder petrol engine drives the running gear consisted of two front wheels with hydro-pneumatic tires for steering and a track each side with 14 road wheels—7 per side, overlapping and interleaved. A drive sprocket was located at the front of each track system. Minor variations on the track and road wheel design and manufacture took place throughout the course of service, some being combined in the field as repairs took place. In 1943, the Maybach HL62 engine was replaced with a Maybach HL64.

A quick look at what we have so far.

Better put the gun on.

The 2cm Flakvierling 38

The Flakvierling 38 anti-aircraft mount system was introduced into service in 1940. It was developed by the Mauser company for the Kriegsmarine at first but was then adopted by the Wehrmacht in order to provide an anti-aircraft system with a better rate of fire. It consisted of four 2cm Flak 38 AA guns mounted together, two on each side. This allowed the Flakvierling to put up four times more bullets in the same amount of time compared to the single Flak 38, thus increasing the chances of severely damaging enemy airplanes.

Inadvertently, this also made the gun quite potent against ground targets, as it was able to saturate enemy positions with fire.

There was no central loading system and each gun had its own 20 round magazine. The magazines were mounted on the sides of the system. When the system was at 0 degrees elevation, the magazines were horizontal.

The guns had a maximum range of 4.7 km and a maximum altitude range of 3.7 km. The combined maximum rate of fire of the 4 guns was 1800 rounds per minute, but this was usually closer to 800 rpm in operation, as the guns needed to be reloaded after they finished their magazines. It could take as little as 3 seconds to fire off all four magazines. Special compartments for the magazines were present on either side of the mount, rotating along with the whole system. The gun barrels could be removed for cleaning.

Let's jump over to the final part where I shall add the figures and put the whole on a base.
